CV/CC/CP Priority

DSP-WR series provides CV(Constant Voltage), CC(Constant Current) and CP(Constant Power) modes.
Allows user to select suitable mode correspond to test requirement.
Below shows an application of CC mode(Diode, Laser Diode, LED, Power Chip Testing).
Avoid any current/voltage overshoot during diode validation.

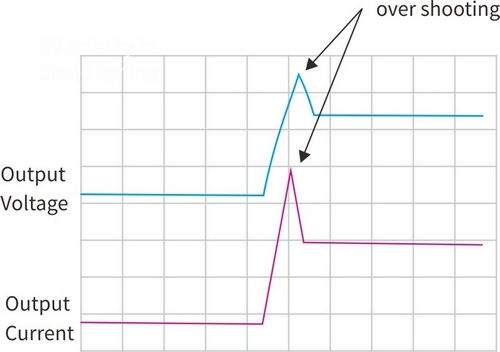

CV priority in Diode testing
CC priority in Diode testing
CC Àu¥ý
